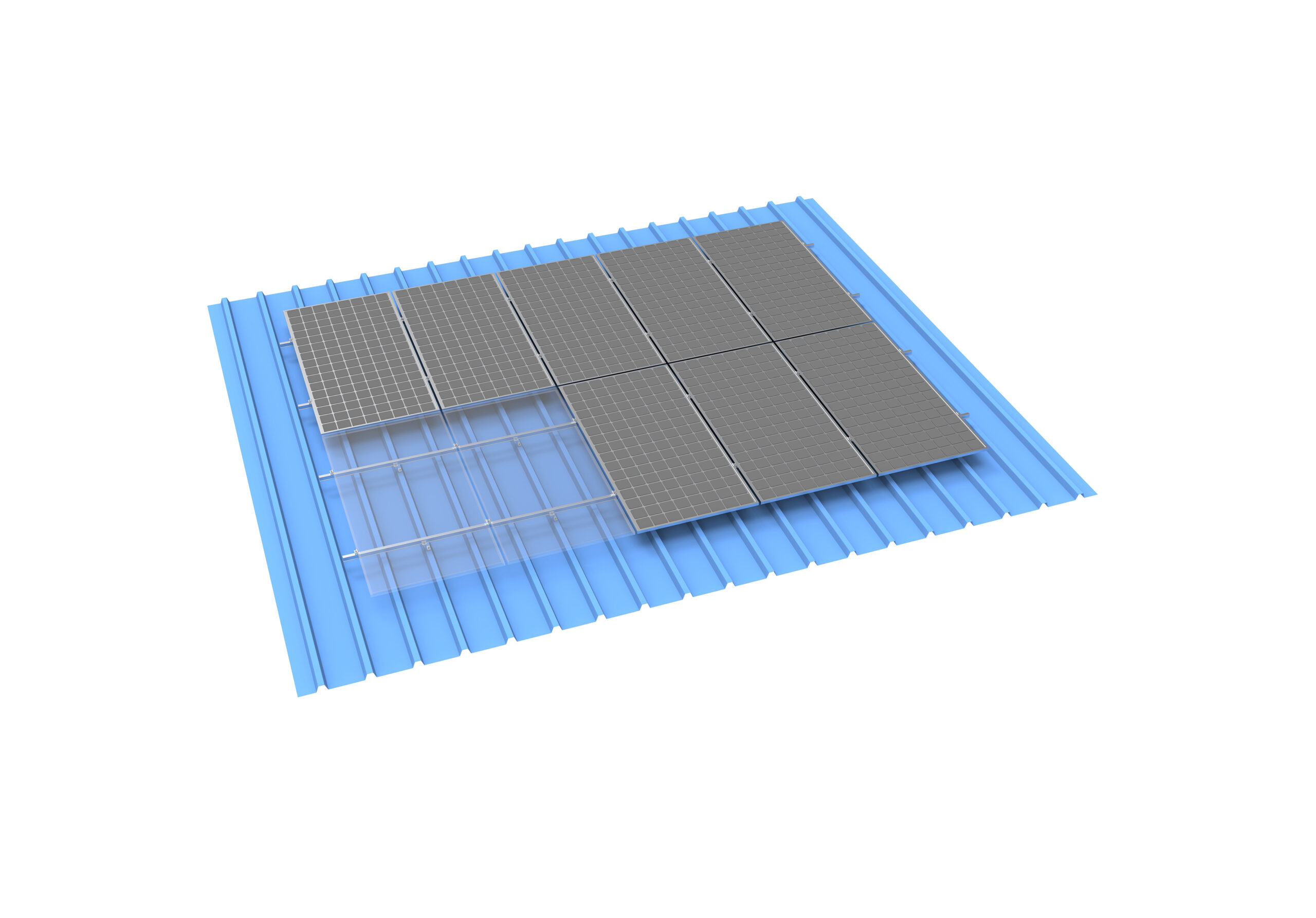

Topex Roof Mounting System-Track with C Clamp – The new rail structure features a closed-section design, making it lighter and stronger. The new block design is easier to install and suitable for both commercial and residential roofs.
1. Main Material: AL6005-T5 / SUS304
2. Tilt Angle: 0° – 30°
3. Max Wind Load: 45m/s
4. Max Snow Load: 2.5KN/㎡
5. Roof Type: Tin and Tile roof
6. Mounting Angle: Flush
7. Standard: GB50797-2012 / AS NZS1170.2-2021 / EN1991 / JISC8955-2017 / ASCE 7-10
8. Corrosivity Category: C1 ~ C4
1. Module Size:
Suitable for all panel sizes.
2. Compatibility:
With a full range of tile hooks, it is suitable for different types of roofs.
3. High-quality Material:
While ensuring optimum strength, it does not require adding too much load to the rooftop surface.
4. Strong Stability:
Withstand high snow and wind loads.
5. Easy Installation:
The minimal number of parts required is highly recyclable.
6. Customizable:
Customizable and tailor-made designs are available.
Topex Solar's professional sales team will provide basic products introduction and training.
Topex Solar's sales team will provide installation guide and on-line service.
Topex Solar's professional technician team will provide a floating mounting solution based on satellite surveyed data.
Topex Solar provide 10-year warranty.
